JK67
- 7 Elements on 6M
- 30 Foot Boom
Low Noise - Heavy Duty

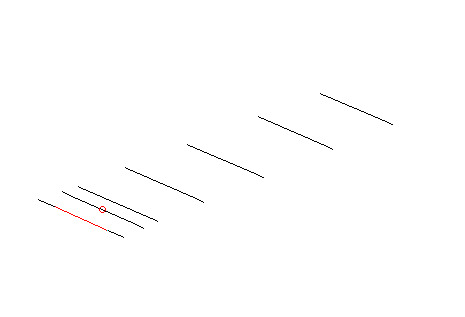

This 7 element 6m Low Noise Yagi gives you tremendous performance with very high gain on a 30ft boom.
The antenna has been optimized for good F/R and SWR performance across the 6-meter band.
The antenna comes with our high quality, heavy duty materials and hardware. We have managed to keep the antenna light-weight and at the same time keep the build quality the best like our bigger yagis.
The FreeSpace gain of around 13+ dbi or the 18+ dbi gain at 1.5-wavelength above ground makes this a great antenna for use during E-Skip and other times. Stack a few of them and enjoy 6-meters.
** This antenna is a 50-ohm direct feed
Enjoy around 13+ dbi of Freespace gain or 18+ dbi of Gain at 1.5-wavelength above ground !!!
JK67 spec sheet
| 6M | |
|---|---|
| Number Elements | 7 |
| Active Boom Length | .29.7 ft |
| Peak Gain * (dBi) | 13.1 dBi |
| Peak Gain * (dBd) | 11 dBd |
| Peak F/B | 20+ dB |
| Peak F/R | 20+ dB |
| 2:1 SWR Bandwidth | 500 kHz |
| 1.5:1 SWR Bandwidth | 375 kHz |
| Max Element Length | 9.67ft |
Tap a band or swipe the cards →
6M
- Number Elements
- 7
- Active Boom Length
- .29.7 ft
- Peak Gain * (dBi)
- 13.1 dBi
- Peak Gain * (dBd)
- 11 dBd
- Peak F/B
- 20+ dB
- Peak F/R
- 20+ dB
- 2:1 SWR Bandwidth
- 500 kHz
- 1.5:1 SWR Bandwidth
- 375 kHz
- Max Element Length
- 9.67ft
* Peak gain is shown in free space. dBd = dBi − 2.1
*** Gain above ground figures are modeled over average/flat ground ***
Mechanical
- Approx wt.
- 29 lbs
- Wind Area “C”
- 2.63 Sq Ft
- Wind Area “G”
- 4.73 Sq Ft
- Projected Area
- 3.94 Sq Ft
- Max Wind Speed (Boom)
- 116 Mph
- Max Turning Radius
- 15.62 Ft
- Max Wind Speed (Elements)
- 150 Mph
- Feedpoint
- 50-ohm direct feed

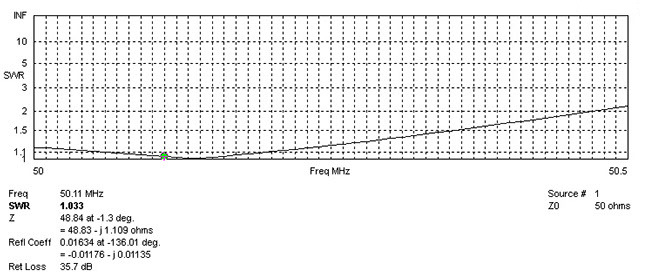

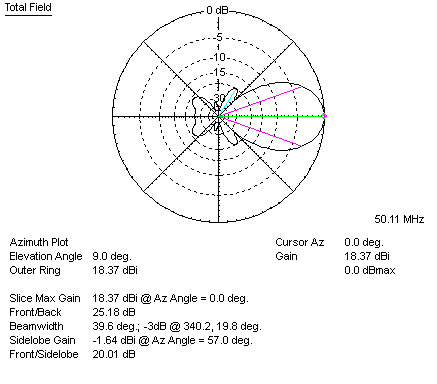

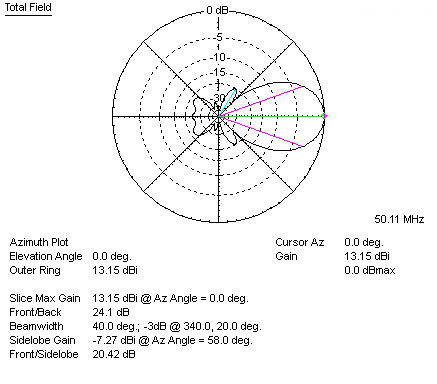

Plots
*** Gain above ground figures are modeled over average/flat ground ***
Click any plot to open it full size.
*** No Balun included. We recommend a simple Coax choke, however will provide an optional balun at additional cost ***
** All pricing shown assumes the basic mounting hardware. Additional costs may apply for customized mast plates and hardware.
