JK402-PICCOLO
- 2 Elements on 40M
- 18 Foot Boom
The JK402P (Piccolo) is a 18Ft boom 2 element 40m Yagi that has excellent gain and F/R. The elements are loaded Capacitively & Inductively which shortens the overall length while still maintaining a good performance across the 40M band.
This antenna is made for the DX'er or Contester that is looking for an antenna to work across the globe with a compact footprint.
It is made with very high quality materials and the best in its class in the market in terms of mechanical construction and electrical performance.
This 40M Yagi has a great performance bandwidth all the way at the CW portion of the band, where the Max performance of this antenna is achieved. It then extends all way in to the upper SSB portion without significant degradation in performance.
Enjoy 5 to 6 dbi of Freespace Peak gain or 9.5 to 11dbi of Peak gain at 70ft above Avg. ground !!!
Element Length as short as 20M elements
JK402-PICCOLO spec sheet
| 40M | |
|---|---|
| Number Elements | 2 |
| Active Boom Length | 17.5 ft |
| Peak Gain * (dBi) | 5.9 dBi |
| Peak Gain * (dBd) | 3.7 dBd |
| Peak F/B | 18 dB |
| Peak F/R | 14 dB |
| 2:1 SWR Bandwidth | 250 kHz |
| 1.5:1 SWR Bandwidth | 200 kHz |
| Max Element Length | 36 ft |
Tap a band or swipe the cards →
40M
- Number Elements
- 2
- Active Boom Length
- 17.5 ft
- Peak Gain * (dBi)
- 5.9 dBi
- Peak Gain * (dBd)
- 3.7 dBd
- Peak F/B
- 18 dB
- Peak F/R
- 14 dB
- 2:1 SWR Bandwidth
- 250 kHz
- 1.5:1 SWR Bandwidth
- 200 kHz
- Max Element Length
- 36 ft
* Peak gain is shown in free space. dBd = dBi − 2.1
*** Gain above ground figures are modeled over average/flat ground ***
Mechanical
- Approx wt.
- 88 lbs
- Wind Area “C”
- 5.4 Sq Ft
- Wind Area “G”
- 9.72 Sq Ft
- Projected Area
- 8.1 Sq Ft
- Max Wind Speed
- 100 Mph
- Max Turning Radius
- 20 Ft
- Boom
- 2" OD / 0.125" Wall
- Feedpoint
- 50-Ohms
- Power
- 5KW Avg or Balun restricted

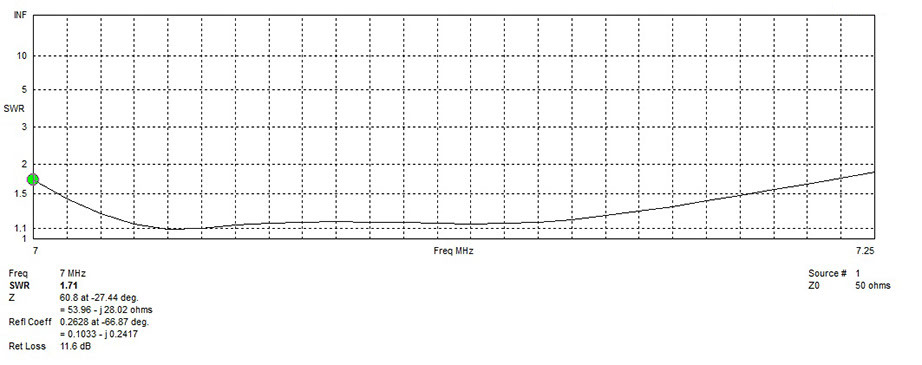

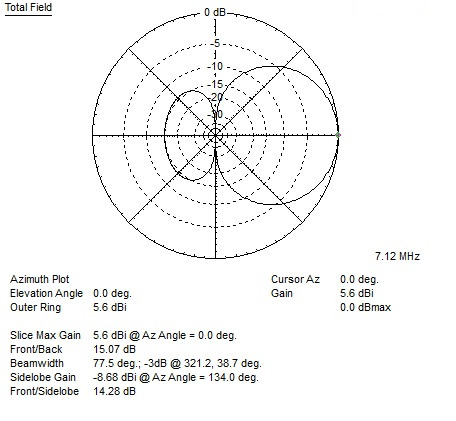

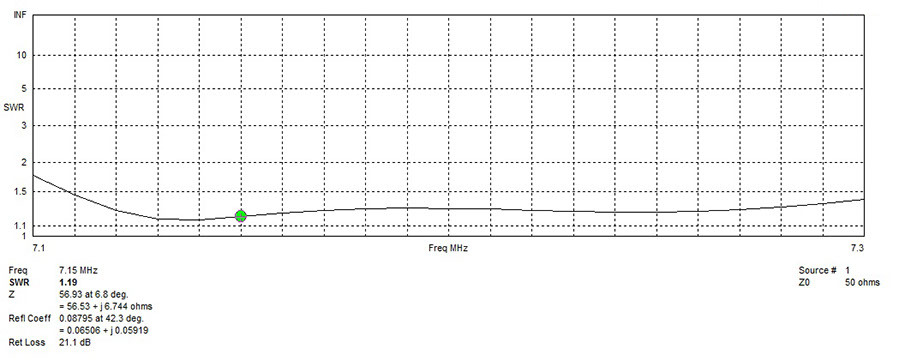

Plots
Click any plot to open it full size.
** All pricing shown assumes the basic mounting hardware. Additional costs may apply for customized mast plates and hardware.
