20M Monoband Yagi
JK206
- 6 Elements on 20M
- 44 Foot Boom
PriceUS$3,690.00**
BUY NOWThis 6 element 20m Yagi gives you tremendous performance with a very high gain on a 42ft boom. The antenna has been optimized for good F/R and SWR performance across the band.
The antenna comes with our high quality, heavy duty materials and hardware.
Specifications
JK206 spec sheet
| 20M | |
|---|---|
| Number Elements | 6 |
| Active Boom Length | 44.0 ft |
| Peak Gain * (dBi) | 10.4 dBi |
| Peak Gain * (dBd) | 8.3 dBd |
| Peak F/B | 28 dB |
| Peak F/R | 26 dB |
| 2:1 SWR Bandwidth | SWR less than 1.5:1 across the entire band |
| 1.5:1 SWR Bandwidth | 1.5:1 at band edge |
| Max Element Length | 36.4 ft |
Tap a band or swipe the cards →
20M
- Number Elements
- 6
- Active Boom Length
- 44.0 ft
- Peak Gain * (dBi)
- 10.4 dBi
- Peak Gain * (dBd)
- 8.3 dBd
- Peak F/B
- 28 dB
- Peak F/R
- 26 dB
- 2:1 SWR Bandwidth
- SWR less than 1.5:1 across the entire band
- 1.5:1 SWR Bandwidth
- 1.5:1 at band edge
- Max Element Length
- 36.4 ft
* Peak gain is shown in free space. dBd = dBi − 2.1
Mechanical
- Approx wt.
- 138 lbs
- Wind Area “C”
- 9.65 Sq Ft
- Wind Area “G”
- 17.37 Sq Ft
- Projected Area
- 14.47 Sq Ft
- Max Wind Speed
- 100 Mph
- Max Turning Radius
- 29.8 Ft

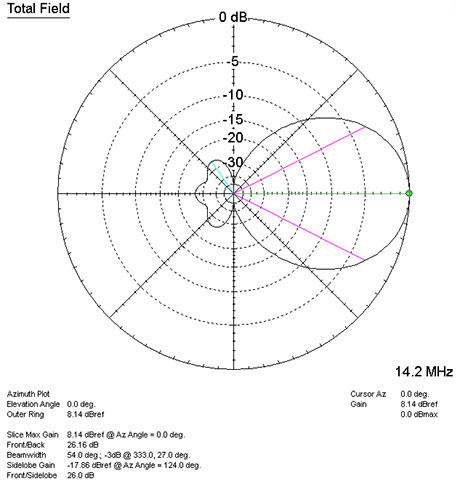

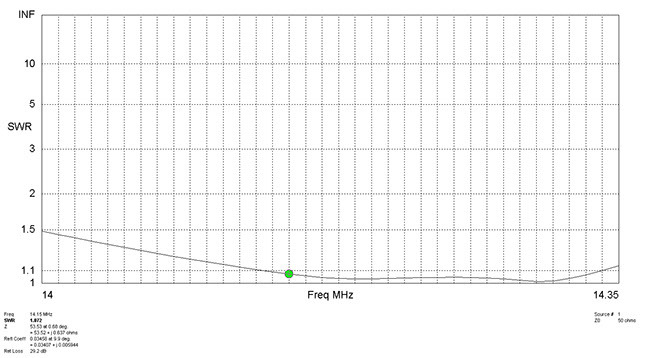

Patterns & SWR
Plots
Click any plot to open it full size.
** All pricing shown assumes the basic mounting hardware. Additional costs may apply for customized mast plates and hardware.
