15M Monoband Yagi
JK155

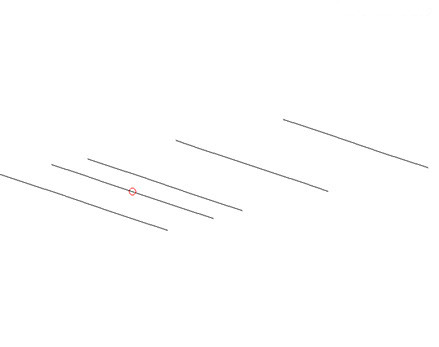

- 5 Elements on 15M
- 32 Foot Boom
PriceUS$2,135.00**
BUY NOWThis 5 element 15m Yagi gives you tremendous performance with a very high gain on a 32ft boom.
The antenna has been optimized for good F/R and SWR performance across the band.
The antenna comes with our high quality, heavy duty materials and hardware.
Specifications
JK155 spec sheet
| 15M | |
|---|---|
| Number Elements | 5 |
| Active Boom Length | 32.0 ft |
| Peak Gain * (dBi) | 10.66 dBi |
| Peak Gain * (dBd) | 8.56 dBd |
| Peak F/B | 32 dB |
| Peak F/R | 25 dB |
| 2:1 SWR Bandwidth | SWR less than 1.1:1 across the entire band |
| 1.5:1 SWR Bandwidth | SWR less than 1.1:1 across the entire band |
| Max Element Length | 24.0 ft |
Tap a band or swipe the cards →
15M
- Number Elements
- 5
- Active Boom Length
- 32.0 ft
- Peak Gain * (dBi)
- 10.66 dBi
- Peak Gain * (dBd)
- 8.56 dBd
- Peak F/B
- 32 dB
- Peak F/R
- 25 dB
- 2:1 SWR Bandwidth
- SWR less than 1.1:1 across the entire band
- 1.5:1 SWR Bandwidth
- SWR less than 1.1:1 across the entire band
- Max Element Length
- 24.0 ft
* Peak gain is shown in free space. dBd = dBi − 2.1
Mechanical
- Approx wt.
- 96 lbs
- Wind Area “C”
- 5.35 Sq Ft
- Wind Area “G”
- 9.63 Sq Ft
- Projected Area
- 8.02 Sq Ft
- Max Wind Speed
- 100 Mph
- Max Turning Radius
- 19.5 Ft

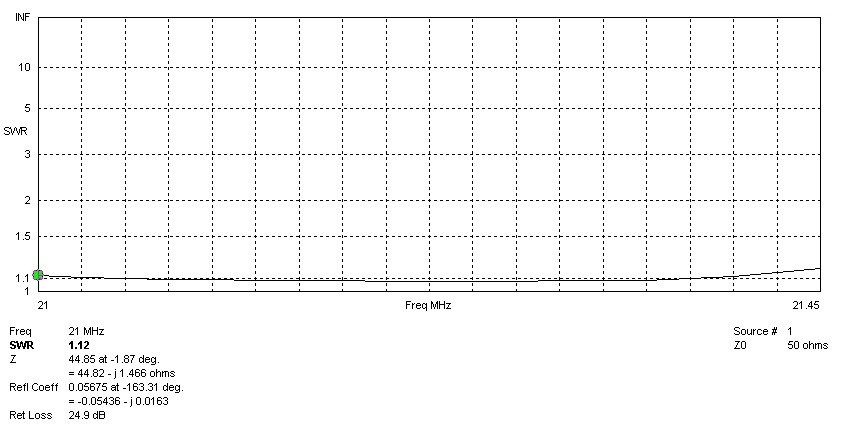

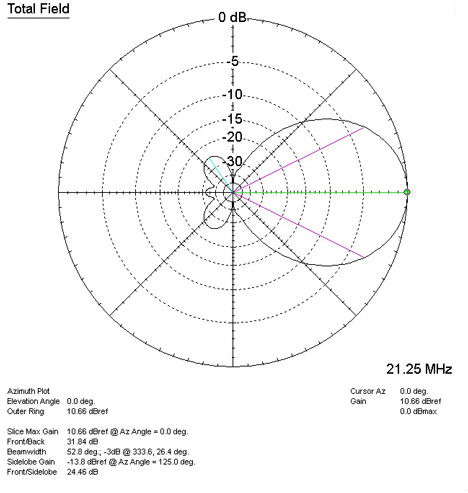

Patterns & SWR
Plots by band
Click any plot to open it full size.
** All pricing shown assumes the basic mounting hardware. Additional costs may apply for customized mast plates and hardware.
