15M / 17M Dual-band Yagi

JK1517

2 Elements on 17M
4 Elements on 15M
18 Foot Boom

PriceUS$885.00^**

The JK1517 was designed as a simple dual band yagi that performs amazingly on 17m and 15m and on a smaller boom. This single feed point yagi performs like a champion giving great gain and F/R while keeping swr low on both 15m and 17m.

This interlaced yagi gives the best performance at par with any 3-element monoband yagi in its class on 17m and 4-element monoband yagi on 15M.

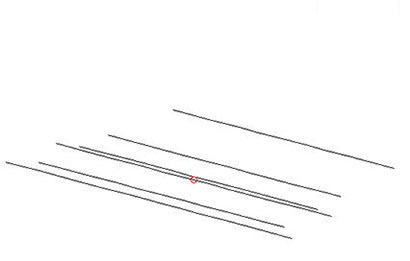

JK1517 element layout

Specifications

JK1517 spec sheet

	17M	15M
Number Elements	3 Active^†	4
Active Boom Length	6 ft	16 ft
Peak Gain * (dBi)	7.5 dBi	8.7 dBi
Peak Gain * (dBd)	5.3 dBd	6.45 dBd
Peak F/B	16 dB	15 dB
Peak F/R	16 dB	15 dB
2:1 SWR Bandwidth	SWR less than 1.1:1 across the entire band	SWR less than 1.5:1 across the entire band
1.5:1 SWR Bandwidth	SWR less than 1.1:1 across the entire band	SWR less than 1.5:1 across the entire band
Max Element Length	28.1 ft	24 ft

Tap a band or swipe the cards →

17M

Number Elements: 3 Active^†
Active Boom Length: 6 ft
Peak Gain * (dBi): 7.5 dBi
Peak Gain * (dBd): 5.3 dBd
Peak F/B: 16 dB
Peak F/R: 16 dB
2:1 SWR Bandwidth: SWR less than 1.1:1 across the entire band
1.5:1 SWR Bandwidth: SWR less than 1.1:1 across the entire band
Max Element Length: 28.1 ft

15M

Number Elements: 4
Active Boom Length: 16 ft
Peak Gain * (dBi): 8.7 dBi
Peak Gain * (dBd): 6.45 dBd
Peak F/B: 15 dB
Peak F/R: 15 dB
2:1 SWR Bandwidth: SWR less than 1.5:1 across the entire band
1.5:1 SWR Bandwidth: SWR less than 1.5:1 across the entire band
Max Element Length: 24 ft

^† 17M: 2 physical elements. Thanks to the 15M design it behaves like an active 3-element Yagi on 17M.

* Peak gain is shown in free space. dBd = dBi − 2.1

Mechanical

Approx wt.: 37.5 lbs
Wind Area “C”: 5.25 Sq Ft
Wind Area “G”: 9.45 Sq Ft
Projected Area: 7.8 Sq Ft
Max Wind Speed: 100 Mph
Turning Radius: 16 Ft

Patterns & SWR

Plots by band

17M15M

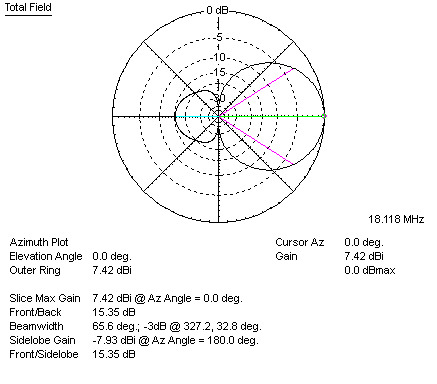

JK1517 17M azimuth plot

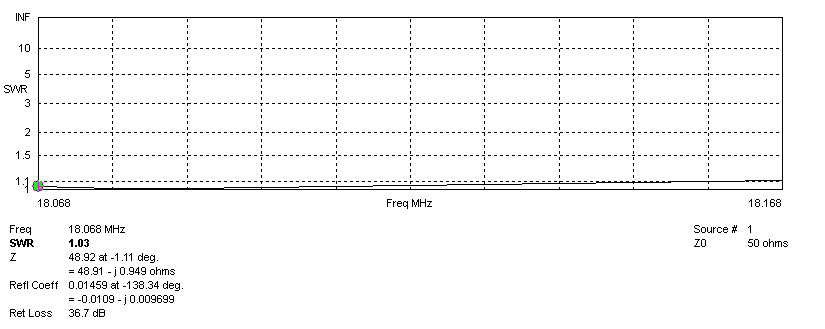

JK1517 17M SWR plot

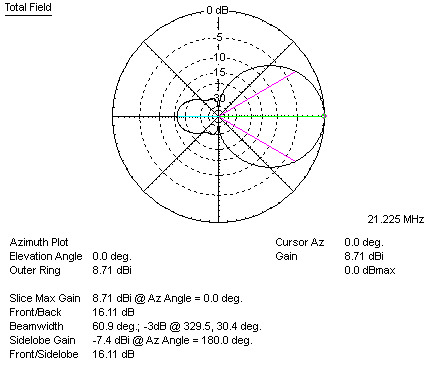

JK1517 15M azimuth plot

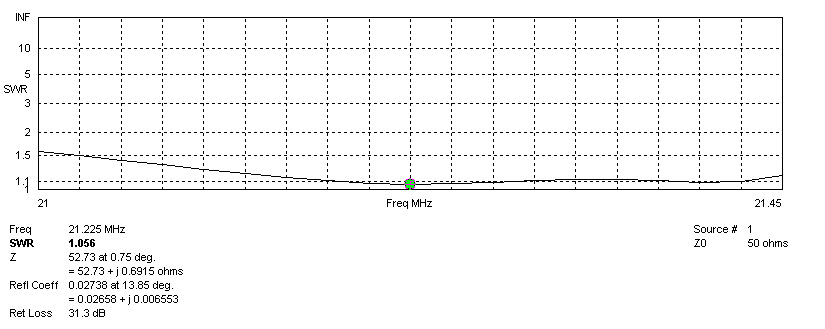

JK1517 15M SWR plot

Click any plot to open it full size.

** All pricing shown assumes the basic mounting hardware. Additional costs may apply for customized mast plates and hardware.
